From .txt to .xml

This is documentation on how we used REGEX to transform raw text files into workable XML. REGEX, also known as regular expressions, is a sequence of characters that defines a search pattern. Using this, we can refill the highlighted information with xml tags like <character></character>

REGEX Steps

First, like usual I found an eliminated all >, <, and & that would ruin our xml. Fortunately, there was nothing to be removed and I could immediately start on the process.

FIND

(^.+)

REPLACE

<line>\1</line>

This wraps every sentence with a line tag. then I found that every character was followed by a colon.

FIND

<line>(.+):

REPLACE

<line><character>\1</character>

This keeps the line tag intact when I find/replace. Next, dialogue

FIND

</character>(.+)</line>

REPLACE

</character><dialogue>\1</dialogue></line>

Now all I have left is stage directions and clean up. I saw that the stage directions were wrapped in square brackets.

FIND

\[(.+?)\]

REPLACE

<stage>\1</stage>

Now I wrapped the whole thing in xml and fixed the beginning and end with an intro and credits tag.

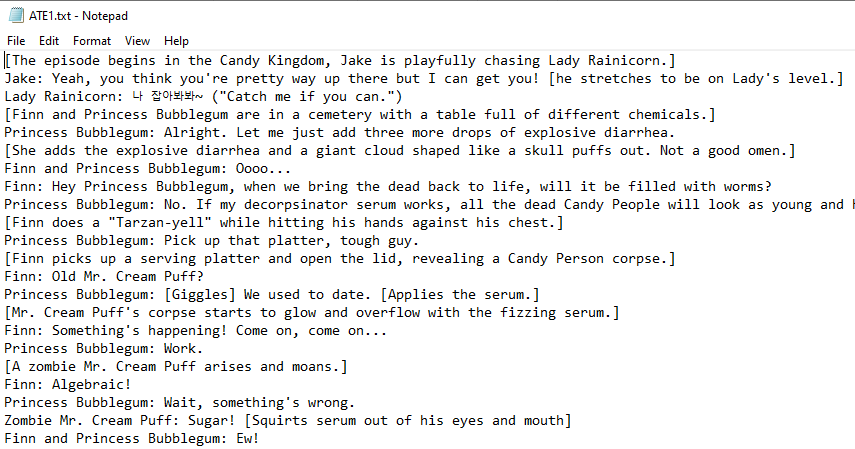

INPUT (raw .txt file)

Raw text example

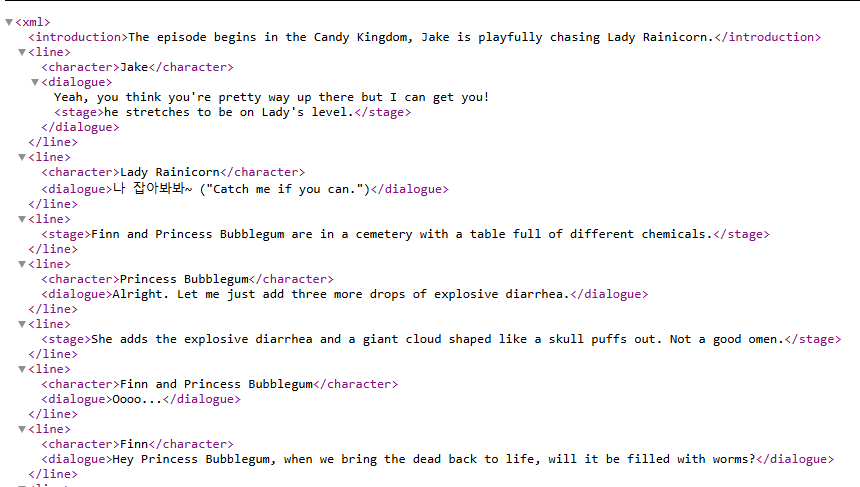

OUTPUT (.xml)

XML output example
